Planet KT 13x25mm 48dB Drop Seal Planet

Insulation

Planet KT 13x25mm 48dB Drop Seal

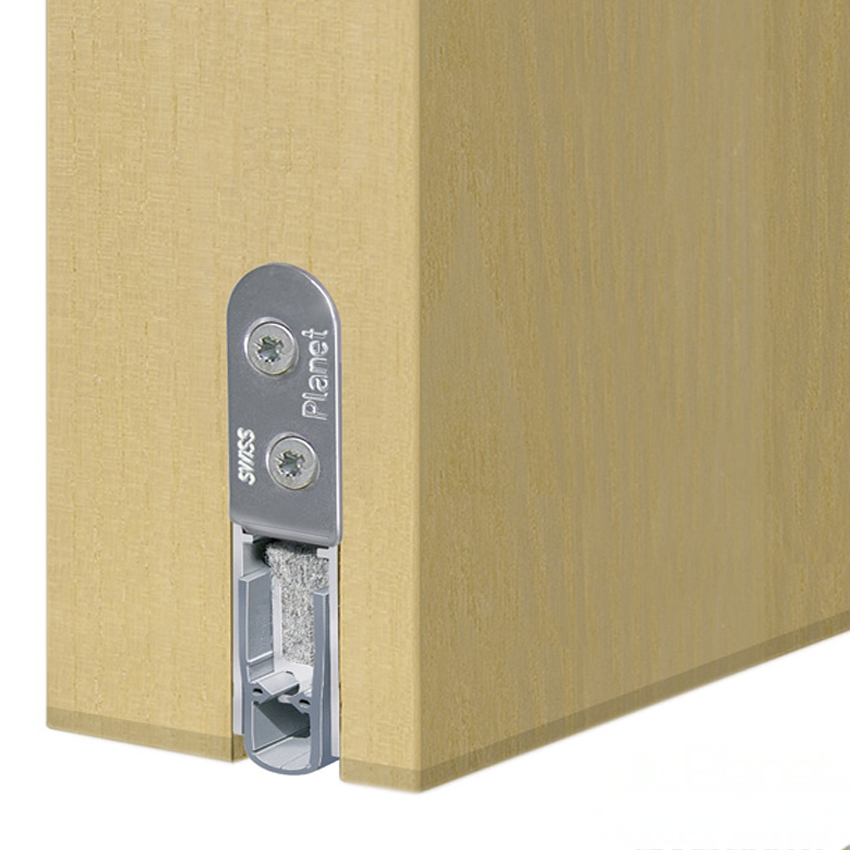

The Planet KT RD is an automatic door bottom seal offering up to 48 dB of insulation for doors that provide acoustic and smoke insulation. It is triggered from the hinge side, adapts to sloping floors and drops in parallel. It offers a sealing height of up to 18 mm.

Models
Planet KT RD; Planet KT FH+RD
Planet KT RD area of use
Doors providing acoustic and smoke insulation
Planet KT FH+RD area of use
Acoustic, smoke- and fire-resistant doors
Acoustic insulation
Up to 48 dB

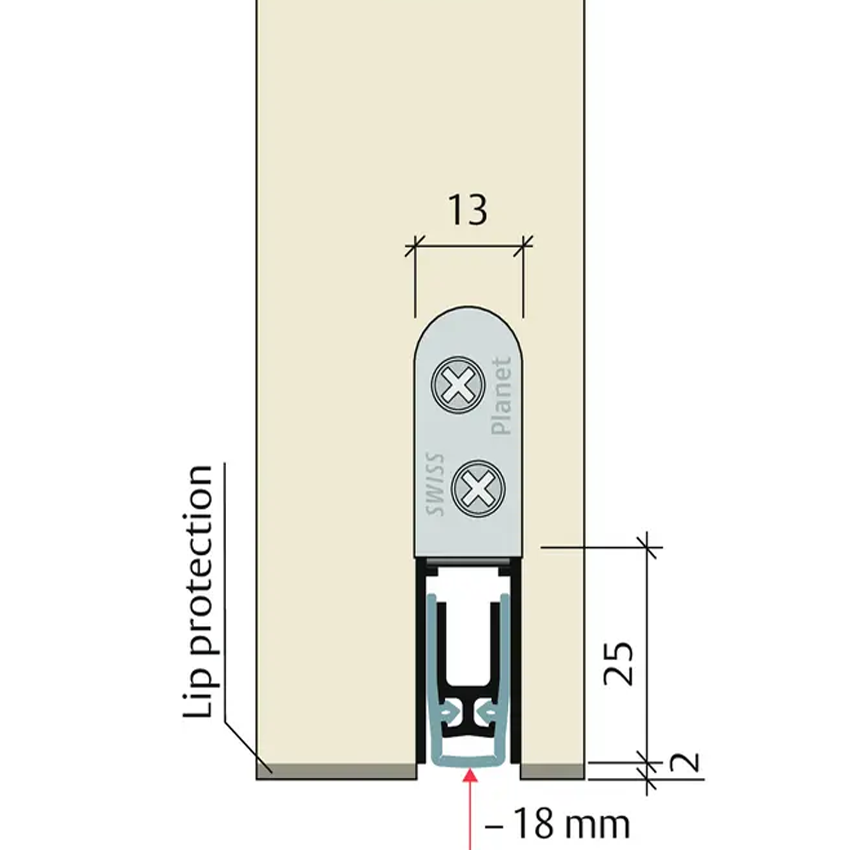

Drop / sealing height
Up to 18 mm (adjustable)

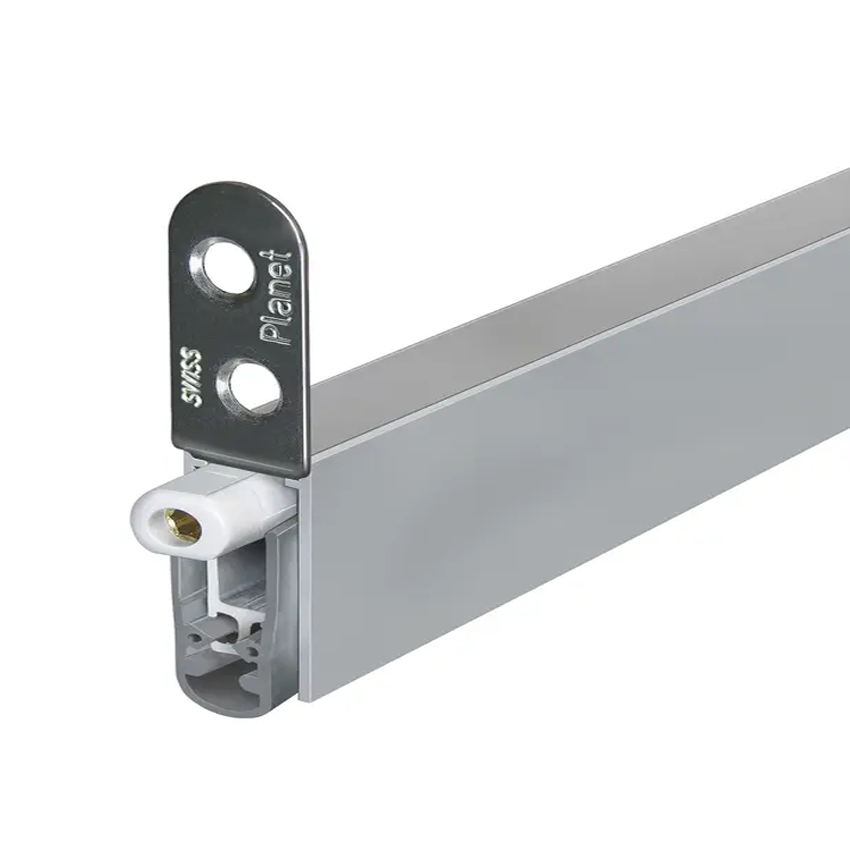

Body
Aluminum (13 x 25 mm)

Product Details

Planet KT 13x25mm 48dB Drop Seal

The Planet KT FH+RD is a model developed for acoustic, smoke- and fire-resistant doors. It is likewise triggered from the hinge side, adapts to sloping floors and seals up to 18 mm. It contains a self-extinguishing silicone seal. Both models feature an aluminum body (13 x 25 mm) and an elegant, durable design.

  • Adjustable drop height of up to 18 mm.
  • Provides up to 48 dB of acoustic insulation with optimal sealing.
  • The deep seating area protects the silicone seal.
  • Single-sided, silent operation.
  • With its parallel drop movement it does not rub or catch.
  • Adapts automatically to sloping floors.
  • Can also be used with double-leaf doors.
  • The drop height is easily adjustable.
  • 7-year warranty.

Technical specifications

Models
Planet KT RD; Planet KT FH+RD
Planet KT RD area of use
Doors providing acoustic and smoke insulation
Planet KT FH+RD area of use
Acoustic, smoke- and fire-resistant doors
Acoustic insulation
Up to 48 dB
Drop / sealing height
Up to 18 mm (adjustable)
Body
Aluminum (13 x 25 mm)
Triggering
From the hinge side
Movement
Parallel drop movement
Floor adaptation
Automatic adaptation to sloping floors
Seal (FH+RD)
Self-extinguishing silicone seal
Operation
Single-sided and silent
Double-leaf door
Available
Warranty
7 years
